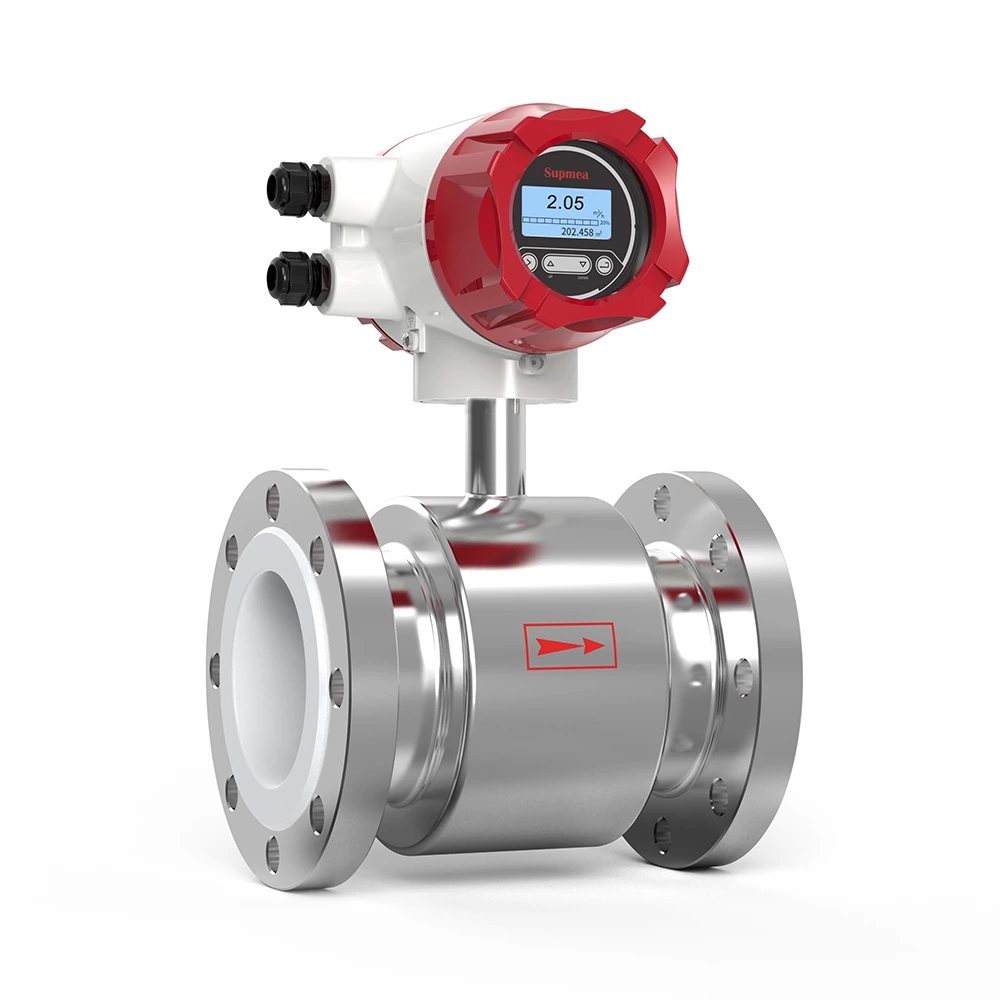

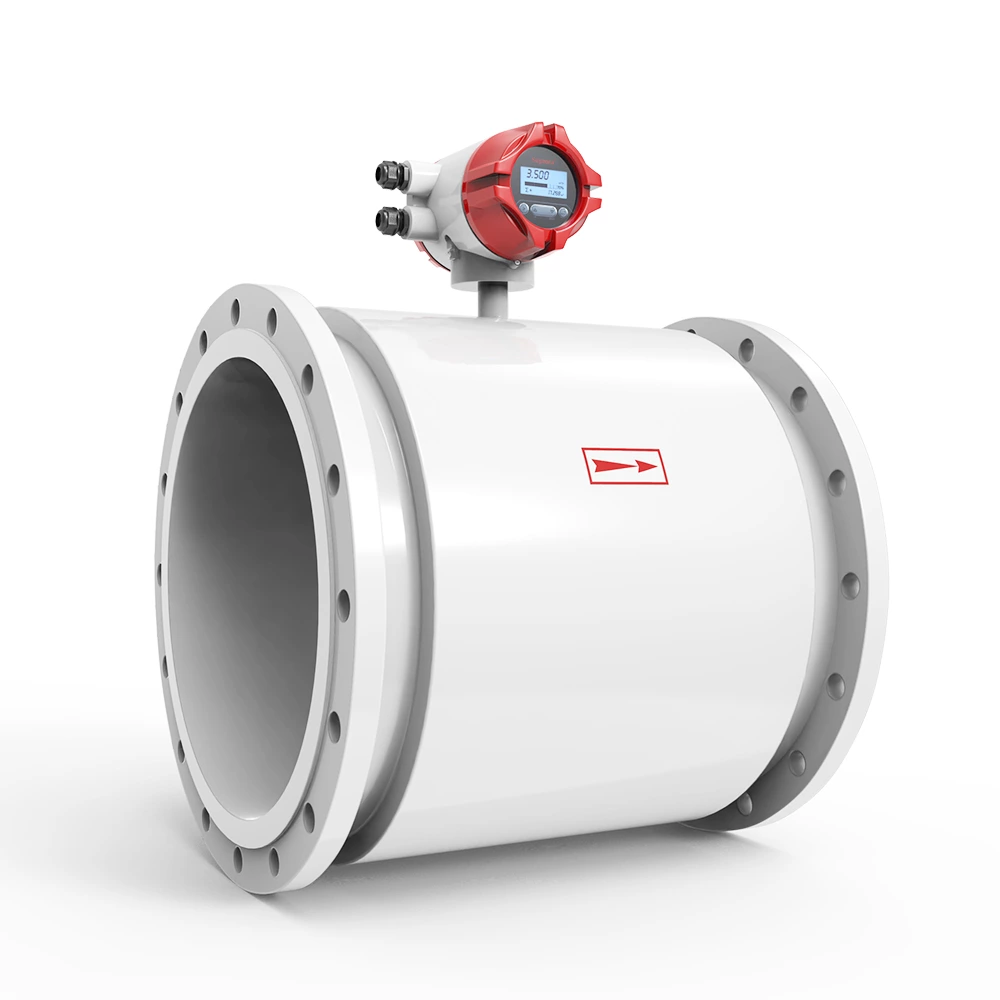

SUP-LDG Carbon Steel Body Electromagnetic Flowmeter
The body of the Supmea carbon steel magnetic flowmeter is made of high-quality carbon steel. It is mainly used to measure the volume flow of conductive media. It is the most widely used flow meter in the process control industry. Supmea carbon steel magnetic flowmeter selects raw materials and is manufactured using mature technology. It has the advantages of high accuracy, good stability, strong anti-interference ability and high cost performance. It has been welcomed by customers all over the world since its launch.
Specification
Product | Electromagnetic flow meter |
Model | SUP-LDG |
Diameter nominal | DN15~DN1200 |
Nominal pressure | DN15 - DN250, PN ≤1.6MPa |
DN300 - DN1000, PN ≤1.0MPa | |
DN1200, PN ≤0.6 MPa | |
Higher pressure can be customized | |
Accuracy | ±0.5% F.S. (Flow speed > 1m/s); ±0.5% F.S.±2mm/s (Flow speed <1m/s) |
Repetitiveness | 0.16% |
Liner material | Neoprene (CR), Polyurethane (PU), PTFE (F4), PFEP (F46), PFA |
Electrode material | 316L Stainless Steel, Hastelloy C, Hastelloy B, Ti, Ta, Pt |
Medium temperature | Neoprene: -10…+60℃ Polyurethane: -10…+60℃ PTFE/FEP: -10…+120℃ PFA: -10…+120℃ |
Power supply | 85-245VAC,50/60Hz, 22VDC-26VDC |
Structure type | Compact type, Remote type |
Ingress protection | IP65, IP68(remote type only) |
Product standard | JB/T 9248-2015 |
Description
· Introduction
Supmea SUP-LDG carbon steel magnetic flowmeter has the characteristics of high accuracy, strong reliability, and low cost. Compared with the expensive international big-name magnetic flowmeter, the Supmea carbon steel magnetic flowmeter maintains the same level in terms of measurement accuracy and stability. But its price is extremely advantageous, and it was developed to allow customers to use more accurate and affordable magnetic flowmeter products.
· The measurement accuracy level is 0.5%, which fully meets the measurement accuracy needs of various industries.
· Selected raw materials are purchased centrally, produced using the world’s leading mature technology, and sold directly by the manufacturer to ensure that users can use good instruments at low cost.
· Senior technical engineers provide one-to-one full selection and installation guidance. Product selection is simple and efficient, and installation saves time and effort.
· Long warranty time, solving customer problems as soon as possible, user-centered, fully protecting customer rights and interests
·Production Process
In order to ensure the product reliability of Supmea carbon steel electromagnetic flowmeter, Supmea recruits top R&D engineers in the industry, invests huge R&D expenses, carefully selects raw material suppliers, adopts mature production processes in the industry, and implements strict quality inspection systems to ensure the reliability of product quality. Supmea hopes to establish a stable and lasting cooperative relationship with users, and expects customers to use Supmea products in batches after trying Supmea products. Therefore, Supmea attaches great importance to product quality and has very strict standards.
Supmea carbon steel electromagnetic flowmeter has the characteristics of high measurement accuracy, good stability and long service life. The Supmea carbon steel electromagnetic flowmeter uses a smart LCD meter that can directly read data and is easy to control. The meter chip and sensor use the world's top measurement chips, with high measurement accuracy. The Supmea carbon steel electromagnetic flowmeter is made of solid materials and is durable. Try it out in various complex working conditions.
· Application
Supmea carbon steel electromagnetic flowmeter has a wide range of applications. It is used in petrochemical industry, steel smelting, water supply and drainage, water conservancy irrigation, water treatment, environmental sewage treatment, papermaking, medicine, food and other fields. It is the most popular in industrial production and automation control. Commonly used flow meters.
Supmea carbon steel electromagnetic flowmeter has sold a total of 500,000 units worldwide. Its customers are in sewage treatment, food manufacturing, pharmaceutical manufacturing, papermaking and other fields. Supmea's customers include both the world's top 500 well-known companies and many small and medium-sized enterprises. . Supmea carbon steel electromagnetic flowmeter has now become an effective substitute for world-renowned brand flow meters, and many customers have made bulk purchases after trial use.
· Selection Guide
In order to ensure that users can efficiently select flowmeter products suitable for their own working conditions, Supmea has established an elite team of selection engineers. Starting from understanding the user's working conditions, they provide users with accurate and appropriate selection assistance to ensure that customers make correct selections and ensure Product safety and measurement accuracy.
· About Supmea
Supmea Automation Co., Ltd is a high-tech enterprise specializing in the R&D and manufacturing of process automation instruments such as electromagnetic flowmeters, vortex flowmeters, and turbine flowmeters. The company is headquartered in the beautiful Hangzhou City, China, and its production bases are located in Jiaxing, Zhejiang, and Zhengzhou, Henan, Chengdu, Sichuan and other places.
The headquarters of Supmea Automation Co., Ltd. has an industry-leading electromagnetic flowmeter calibration system, a 1,500㎡ product research and development laboratory, and has two world-class SMT patch production lines, with 300,000 sets of pressure sensors, 120,000 sets of electromagnetic flowmeters, Annual production capacity of 100,000 sets of water quality analysis instruments and 50,000 sets of level detection equipment.
Supmea Automation Co., Ltd. has 700,000 cooperative customers worldwide, and its products are exported to 139 countries and regions. The company has established branches or agents in Singapore, South Korea, Australia, Thailand and Spain, and can fully meet global needs. It is the core mission of Meiyi Company to meet the product needs of customers within the scope and let the world use good Chinese instruments.
Supmea has obtained trademark certificates in many countries around the world and has more than 100 technical invention patents. The company has passed ISO9001, ISO45001, ISO14001 system certification, and its products have passed FCCID, RoHS, CE, IPXX, explosion-proof and other certifications. The products have strong reliability , long service life, strong substitutability, low use cost and other characteristics.
Choosing Meiyi flowmeter is equivalent to choosing a reliable and reliable flowmeter! We sincerely welcome customers from all over the world to come to the company for factory inspections. Meiyi looks forward to cooperating with you!
