The orifice steam flow meter is an important instrument for measuring steam flow and is widely used in industrial fields. Its special design and precise working principle make it an indispensable part of the steam system. This article will conduct an in-depth study of the principle, structure, working characteristics and advantages of orifice steam flow meters in practical applications.

1. The structure and working principle of the orifice steam flow meter

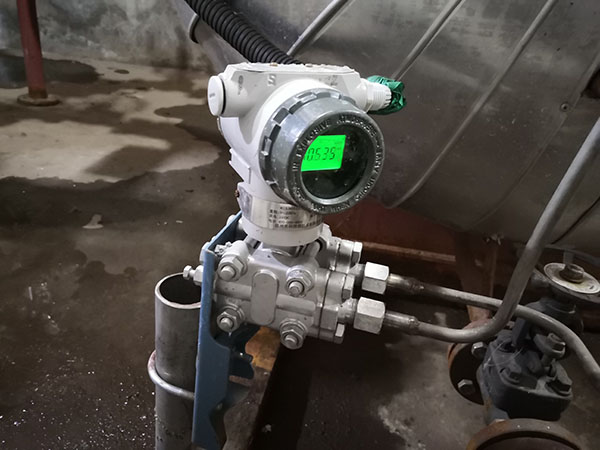

The orifice steam flow meter usually consists of a circular or square thin plate embedded in a pipe with a central hole on it. When steam flows through the orifice plate, the pressure difference generated due to the presence of the orifice plate can be used to calculate the flow rate of the fluid. The working principle is based on Bernoulli's equation and continuity equation, and the actual flow rate of steam is calculated by measuring the pressure difference between the upstream and downstream.

2. Advantages of the orifice steam flow meter

Compared with other steam flow meters, the orifice steam flow meter has the advantages of simple structure, low cost and easy maintenance. Its precise measurement results and reliability make it widely used in industrial production, especially in situations where steam flow needs to be measured under high temperature and high pressure conditions.

3. Steam characteristics considerations: temperature, pressure and humidity

The properties of steam have an important impact on the measurement results of the orifice steam flow meter. As temperature, pressure, and humidity change, the density and fluid properties of steam change. Therefore, when using an orifice steam flowmeter, these steam characteristics need to be considered and corresponding corrections made to ensure measurement accuracy.

4. Application of orifice plate steam flow meter in steam system

Orifice plate steam flow meter is widely used in steam systems, such as boilers, power plants, chemical plants, etc. By monitoring and controlling the flow of steam, it can help improve the energy efficiency of the system, reduce energy consumption, and ensure stable operation of the system.

Related questions

1. What is the performance of the orifice steam flow meter under low load conditions?

Answer: Under low load conditions, orifice steam flow meters may face the problem of insufficient measurement sensitivity. In this case, consider selecting a flowmeter model that is more suitable for low flow conditions.

2. How much influence do temperature and pressure changes have on the orifice steam flow meter?

Answer: Changes in temperature and pressure will affect the density and volume of steam, thereby affecting the measurement results of the orifice steam flow meter. Correction needs to be made based on the steam characteristic curve to ensure measurement accuracy.

3. What impact does the installation position of the orifice steam flow meter have on the measurement results?

Answer: The installation position has an impact on the measurement results of the orifice steam flow meter. Installation at pipe bends, near valves, or changes in pipe diameter may cause unstable fluid flow and affect measurement accuracy.

4. What are the advantages of orifice plate steam flowmeter compared with other steam flowmeters?

Answer: Compared with other steam flow meters, the orifice steam flow meter hasIt has the advantages of simple structure, low cost and strong adaptability. Its reliable measurement results and wide range of applications make it the preferred measuring instrument in steam systems.

5. How suitable is the orifice steam flow meter in high temperature and high pressure environments?

Answer: Orifice steam flow meters usually perform well in high temperature and high pressure environments. However, under extreme conditions, it is necessary to select materials that can withstand high temperatures and pressures and appropriate design parameters to ensure stable performance.

Summary

Orifice steam flow meters are popular for their simple structure, reliable working principle and wide range of applications. When measuring steam flow, fully considering the characteristics of the steam and making necessary corrections can ensure that the orifice steam flow meter provides accurate measurement results, thereby promoting stable and efficient operation of industrial production.
